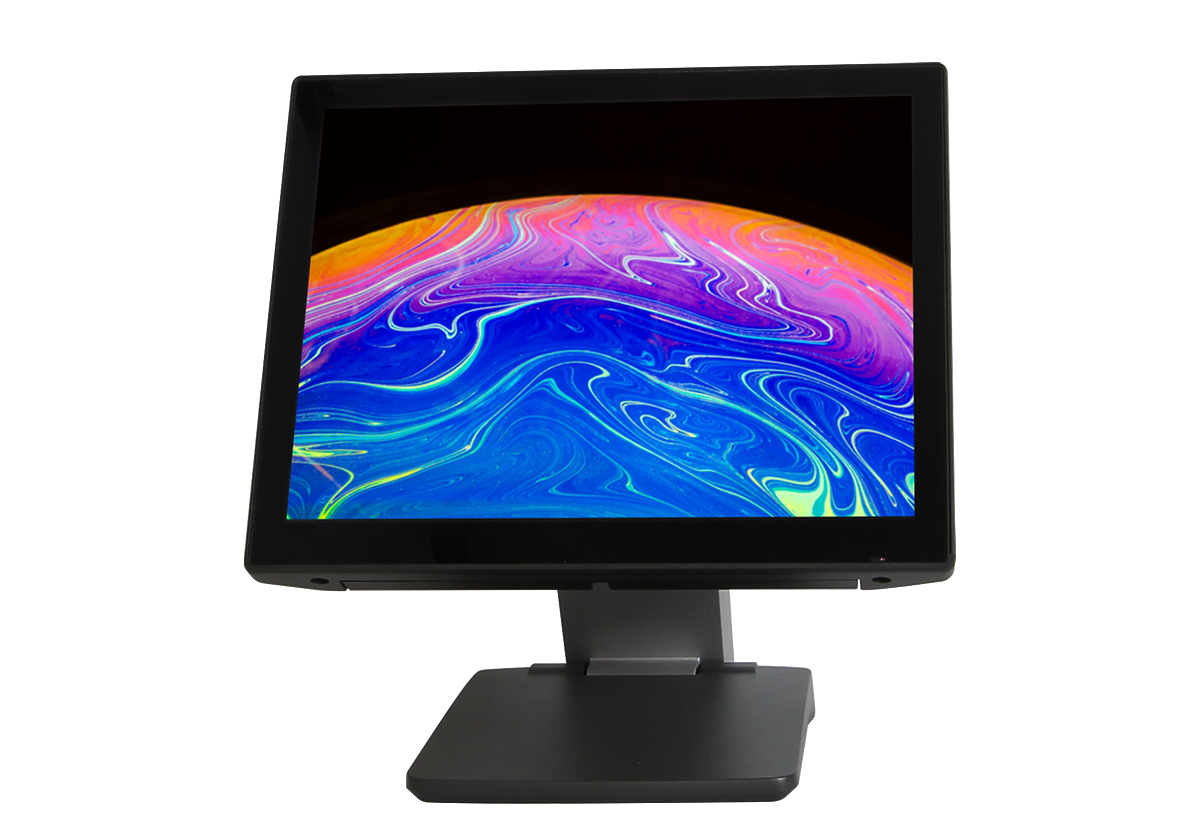

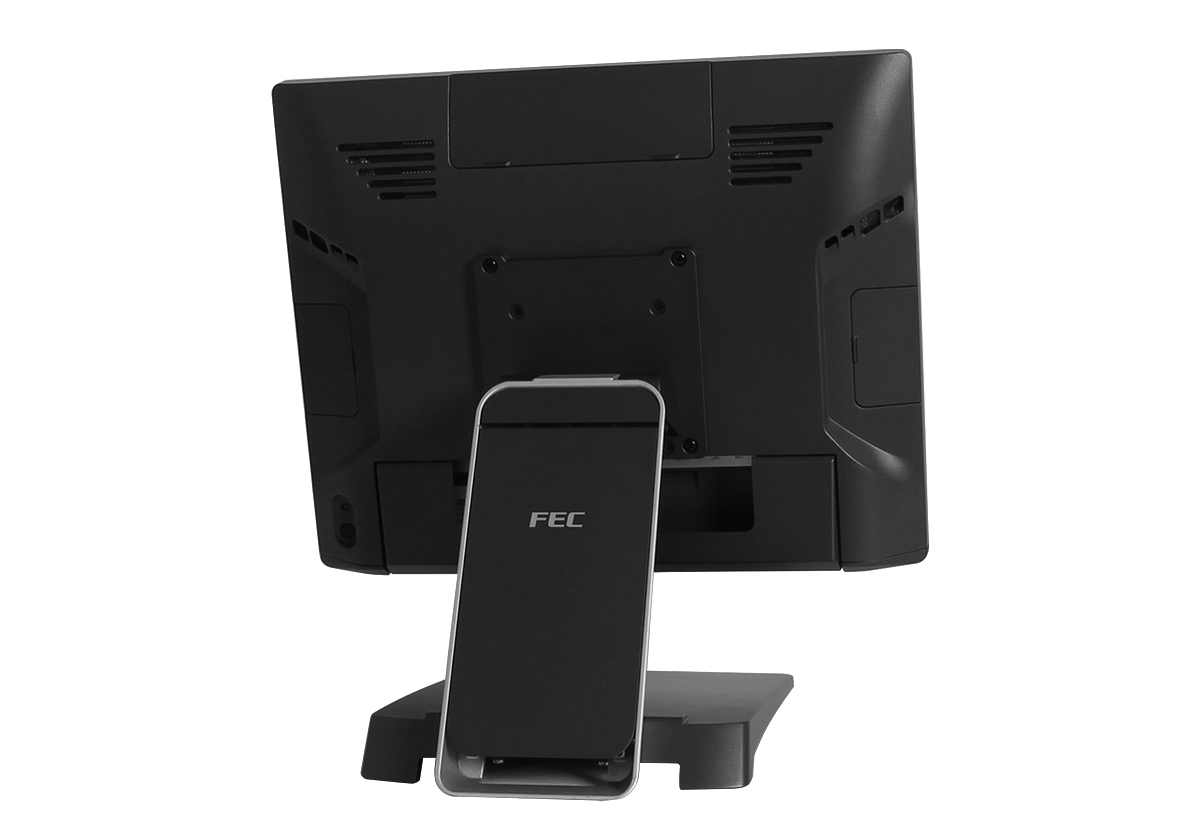

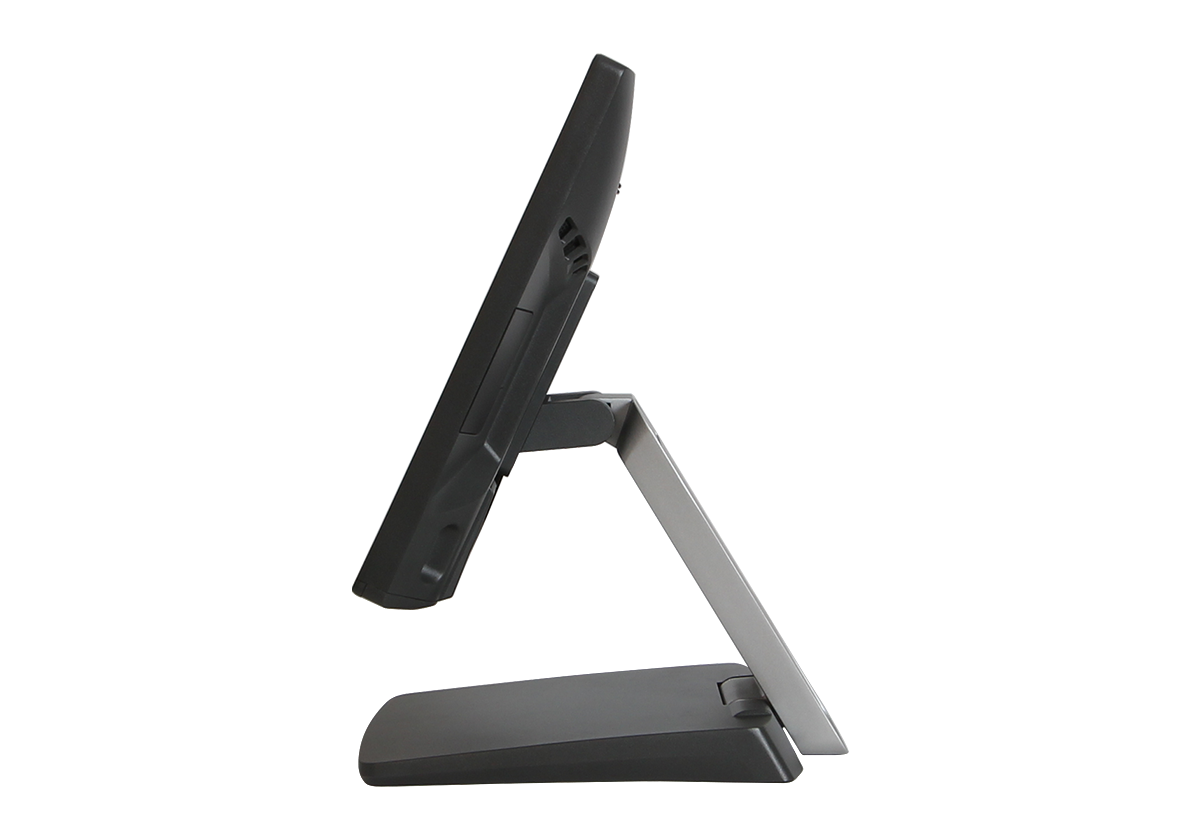

FEC XPPC Panel PC

Technische Daten


Prozessor:

  • Intel® Celeron® J6412 (fanless)
  • Intel® Core i3-12100
  • Intel® Core i5-12400
  • Intel® Core i7-12700


Arbeitsspeicher: 4GB, Max 32GB (2xSo-DIMM DDR4)

Festplatte: 1 x M.2 SSD (SATA III or PCIe)

Gehäuse: Aluminiumdruckguss + Kunststoff

Farbe: schwarz

Display (4:3): 15" TFT, 1024 x 768 (350 nits)

Display (16:9): 15.6" TFT, 1920 x 1080 (300 nits)

Touch: True-Flat PCAP

Betriebssysteme: Windows 10 / 11 (IoT)


Optionen

  • Maknetkartenleser
  • i-Button
  • integrierte VFD Kundenanzeige
  • zweites 10" oder 15" Display


Datenblatt PP-9735 Fanless Datenblatt PP-9745 Performance Rufen Sie uns an Angebot anfordern

Schnittstellen PP-9735 (Fanless)



  • 1 x RJ11 (12V / 24V) Cash Drawer
  • 2 x RJ45 (COM1, COM2) RS232
  • 4 x USB Type A ( 3 x USB 2.0, 1 x USB 3.0)
  • 1 x RJ45 GigaLAN
  • 1 x Video Port
  • 1 x 20V DC-In
  • 1 x Smart DD
  • 1 x Smart I/O (Reserved for additional DC output 5V/12V/24V, USB, or Com ports)




Schnittstellen PP-9745 (Performance)

  • 3 x USB 3.0 Type A
  • 1 x USB 2.0 Type A
  • 1 x USB 2.0 Type A (Reserved for Add-On)
  • 1 x Smart DP (Reserved for Customer Display (COM3) or 2nd Display)
  • 2 x RJ45 (COM1, COM2)
  • 1 x RJ45 LAN
  • 1 x Smart DD
  • 1 x Smart I/O (COM5)
  • 1 x Video Port
  • 1 x RJ11 (12V/24V)

Die XPPC-Serie führt das schlanke und wartungsfreundliche Design der XPOS aus dem Hause FEC fort. Mit verschiedenen Prozessor-Optionen und vielen Zubehörmodulen passt sich diese Touchkasse an jeden Arbeitsplatz an.
